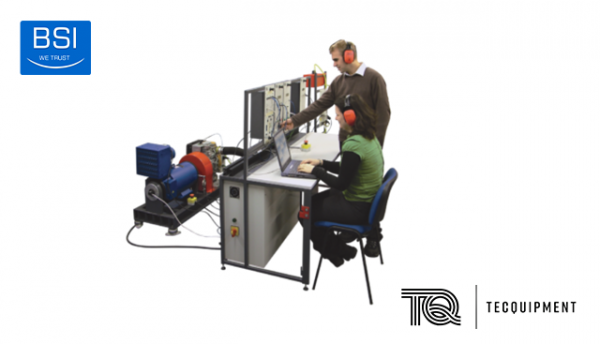

Regenerative Engine Test Set
This floor-mounted engine test set, with bench and instrumentation frame, offfers the most advanced student invertigations into engine performance from TecQuipment. The four-quadrant drive absorbs more power, higher levels of accuracy, has improved speed stability and settles quicker, saving time in the laboratory. Includes extensive instrumentation for comprehensive inestigations.
- Description
Description
INTENDED USE
This floor-mounted engine test set, with bench and instrumentation frame, offfers the most advanced student invertigations into engine performance from TecQuipment. The four-quadrant drive absorbs more power, higher levels of accuracy, has improved speed stability and settles quicker, saving time in the laboratory. Includes extensive instrumentation for comprehensive inestigations.
ADVANTAGES
SPECIFICATION
TecQuipment is committed to a programme of continuous improvement; hence we reserve the right to alter the design and product specifi cation without prior notice. Instrument Console dimensions: Width 1700 mm x depth 750 mm x height 1340 mm
Test Bed dimensions (without engine): Width 1150 mm x depth 500 mm x height 800 mm
Weight (packed total): 600 kg
Volume (packed total): 4.25 m3
Dynamometer: D.C. machine with four-quadrant regenerative drive
Maximum absorption: 10 kW
Maximum speed: 3600 rev.min–1
Speed measurement: Optical encoder and digital display
Torque measurement: Strain gauged load cell and digital display
Air consumption measurement: Airbox and orifi ce plate, pressure transducer and digital display.
Ambient air temperature and barometric pressure measurement: Thermocouple, pressure transducer and digital display
Exhaust temperature measurement: Engine thermocouple and digital display
Fuel consumption: Precision volumetric fuel gauges (analogue or automatic digital versions available)
Safety features:
• Interlocks for mains power failure and engine overspeed
• Emergency stops on test bed and console
